Conductive Level Control by Carlo Gavazzi

Sords Electric Conductive Level by Carlo Gavazzi

Conductive Sensors
2-point level controller
Type CL with potentiometer

CARLO GAVAZZI is pleased to announce the expansion of their Conductive Level Controller product line, which enables customers to have easy-to-use, cost effective level control with a broad range of conductive liquids. Each of the new controllers provides precise filling or emptying control of liquid levels between two different points. Two basic styles are available, in order to meet a diverse range of application requirements. All of the models provide one SPDT relay output, which is rated up to 8A, 250VAC.

The powerful but slim CLD2EB1BU24 provides three sensitivity ranges plus a fine tune adjustment from 250 ohm to 500K ohm, enabling for control with a wide variety of liquids, such as salt water, sewage and chemicals. DIN rail mounting and universal 24-240VAC/DC supply voltage simplifies installation, and the 17.5mm housing width minimizes panel space requirements.
For more cost sensitive applications, the economically priced CLP2EB1Bxxx retains the reliability and many features of the CLD2EB1BU24, at a lower price. This model provides a single mid-range sensitivity adjustment from 5K ohm to 150K ohm, and supports many common applications. Mounted via an 11-pin DIN-rail mountable socket, four different models are available for operating voltages of 24VDC, 24VAC, 115VAC, or 230VAC.
The new Conductive Level Controllers offer a reliable and cost effective solution for level measurement in markets such as Agriculture and Water/Waste Water.



Technical specifications include:

CLD2EB1BU24 DIN Rail Mount Housing:

Two-point charging/discharging

250 ohm to 500K ohm sensitivity

24 to 240VAC/DC power supply

One 8A/250VAC SPDT relay output

CLP2EB1B Plug-in Housing:

Two-point charging/discharging

5K ohm to 150K ohm sensitivity

24VDC, 24VAC, 115VAC, or 230VAC power supply

35mm wide, 11-pin plug-in housing


One 8A/250VAC SPDT relay output

For a Quote please use our Carlo Gavazzi Parts Form, HERE.

Sords Electric ~ 216-765-4230


Thursday, July 31, 2014

Carlo Gavazzi Long Range UltraSonic Sensors

CARLO GAVAZZI  long range UA30CAD60 Series Ultrasonic Sensors

CARLO GAVAZZI is proud to announce the launch of their new long range UA30CAD60 Series Ultrasonic Sensors with digital and analog output configurations. These sensors offer sensing distances of 250 to 6,000 mm (or 6 meters) and are available as either cabled or M12 quick-disconnect versions.

The UA30CAD60 Series is available in one of two different output configurations. The first has two digital NPN or PNP outputs. The second has an analog output in either 4-20mA or 0-10VDC, as well as one digital NPN or PNP output.

The two digital outputs can be set as standard switching outputs with two set points, or as a window function. The output can be set with a positive or negative slope for both filling and emptying applications.

The UA30CAD60 Series sensors are designed for use in a wide variety of applications, including: material handling, food & beverage, HVAC, packaging, plastics, agriculture, and automotive.

Technical specifications include:
Detection Distance of up to 6 Meters
Two Digital Outputs or One Analog & One Digital
12 to 30 VDC Power Supply
IP67 Ratings & NEMA 1, 2, 4, 4X, 5, 6, 6P, 12
Set-up by a Simple Teach Routine
M30 PBT housing with Cable Connection
cULus approval as well as CE marking

Part Numbers are:

NPN Sensore with Plug (M1TI) or Cable Connection (TI)
UA30CAD60NGM1TI  (4-20mA)
UA30CAD60NGTI       (4-20mA)
UA30CAD60NKM1TI   (0-10V)
UA30CAD60NKTI        (0-10V)

PNP Sensore with Plug (M1TI) or Cable Connection (TI)
UA30CAD60PGM1TI  (4-20mA)
UA30CAD60PGTI       (4-20mA)
UA30CAD60PKM1TI   (0-10V)
UA30CAD60PKTI        (0-10V)

Please use our Carlo Gavazzi Parts Form for a quote or questions.

Buy Gavazzi UA18 and UA 30 sensors here.


800-929-2845

Saturday, June 21, 2014

ATC 422AR Flip Flop Timer

Sords Electric stocks the ATC 422AR Flip Flip Timer

The Automatic Timing and Controls 422AR Flip-Flop timer are available with Repeat Cycle operations. During Repeat Cycle operation the 422AR cycle ON and OFF repeatedly, allowing periodic cycling of a load. Two knobs are available to individually adjust the ON-time and the OFF-time. The 422AR can be configured with either the relay being energized during the first timing period or de-energized during the first timing period.
The 422AR have 6 selectable timing ranges available for both ON-time and OFF-time periods. The ranges are 1 and 10 SEC/MIN/HRS dip switch selectable. Having this flexibility allows for a load to be energized for a brief time over a cycle that lasts up to 10 hours. This is deal for lubrication or other maintenance functins that must occur each shift or day during a plant operation.
The ATC 422AR 1/16 DIN housing is compact, and designed for panel mounting. The timer is mounted in an 8-pin round socket. The front of the 422AR features 2 knobs. One knob is used to set the ON-time and the other knob is used to set the OFF-time for the timer’s cycle. The 422AR is universal powered by 20 to 240 VAC or 12 to 240 VDC
operation voltage.
The output of the ATC 422AR has a DPDT mechanical relay which is rated for 10 amps @ 250 VAC resistive. The 422AR can be ordered in a terminal option which is only available with 5 amp Relay output. The 422′s have individual LED indicators for ON time and OFF time. These LED’s provide a unique and effective method of cycle progress indication.
ATC 422AR Flip Flop TDR


Six Selectable Ranges:
1 and 10 SEC/MIN/HRS
• Individual adjustable ON-time and OFF-time
• Cycle can begin with relay energized or de-energized
• Relay rated 10A @ 250 VAC Resistive
• Compact Size (1/16 DIN)
• DPDT Relay Output
• Power: 20VAC to 240VAC
12VDC to 240VDC
• LED Indicator for Power and Relay energized output
• Can be DIN Rail mounted with DIN RAIL socket
The 422AR is the third in line of a tradition of unique Flip Flop Timers by ATC. the original 342 Flip Flop Timer set the standard for repeat cycle timers by have individual settable on and off cycles.  The 422 ATC TDR flip flop timer continued the tradition in an 1/8 DIN package.  The current 422AR is in a 1/16 DIN package but retains the features of the family of timers.

Call Sords Electric for more information or to order.
800-929-2845
Our Contact page HERE.

Friday, June 20, 2014

New CA Carlo Gavazzi Proximity Sensors

Carlo Gavazzi New Capacitive Sensors ~ Sords Electric

June 2014 – CARLO GAVAZZI is proud to announce the launch of their new Multi-voltage CA30CLN12M Series Capacitive Sensor with Relay and Optional Time Delay Output. These sensors provide reliable detection of solid, fluid or granulated substances and are equipped with a two amp SPDT relay output, with a time delay of up to ten minutes. This self-contained solution assures a robust output and sensing flexibility.


The CA30CLN12M Series is constructed in a threaded M30 housing, for simplified mounting ease. The back of the sensor features up to two IP67 integrated adjustment potentiometers for adjusting the sensing distance and an optional potentiometer for the time delay. The adjustable time delays available include: On-Delay or Off-Delay.

This sensor series is specifically designed for feeding systems and silo applications in the agricultural market, but can be used in most industrial applications.

Technical specifications include
Multi voltage power supply 21 to 255 VAC/DC
2 A SPDT relay output
M30 PBT housing with cable connection
Up to two integrated IP67 rated trimmer potentiometers
Multi-turn potentiometer for distance: 4-12 mm
Optional multi-turn potentiometer for time delay: 1 second to 10 minutes
Laser printing of the main specifications on the sensor
IP67 ratings and NEMA 1, 2, 4, 4X, 5, 6, 6P and 12
cULus approval as well as CE marking

With the release of this new multi-voltage capacitive sensor, CARLO GAVAZZI has also improved our popular VC11/12 Series. It carries the same 21-255VAC/DC supply voltage, and as you can see on the far right, it now a strain relief and the potentiometers are no longer hidden behind protective screws, as the new trimmer potentiometers are IP67 rated:




contact
800-929-2845

Thursday, May 29, 2014

Robertshaw Vibration Detection

Robertshaw Industrial Division Vibration Malfunction Detection Switches
The Robertshaw VIBRASWITCH from Sords Electric

366A8  366D8  365A-A8  365A-D8

The 366 switch is Nema 4 and the 365 switch is explosion proof.


Robertshaw Vibration Switches and Monitors
What is Vibration?

Vibration is the mechanical motion of a machine or part back and forth from its point of equilibrium.  The term “vibration” may mean different things to different people.  Some may feel it only denotes movement and to others it may suggest both movement and its relative speed per unit time.  To most people, it describes, on an operating machine, a condition indication impending danger when the vibration appears to be exceeding a level previously considered normal. Note the statement, “a level previously considered normal.” All running machines have some amount of normal or inherent vibration. Example: an automobile engine, in perfect condition and tune, does have some level of inherent vibration.  But, when it starts to “run rough”, the vibration level increases and this is the vibration we desire to detect before damage can occur to the engine.

The our most frequently used terms in any discussion n vibration are: Displacement, Velocity, Acceleration and Frequency. Therfore, defining the meanings of these terms is mandatory if an understanding of vibration and it effects is to be had.

DISPLACEMENT:
Also sometimes referred to as amplitude.  This is defined as the magnitude of the movement or motion of the machine or part under study.  The total distance traveled by the vibrating part- from one extreme limit of travel to the opposite extreme limit of travel - is noted as the “Peak to Peak Displacement.” The value of displacement is normally expressed in mils – one thousandth of an inch. Displacement measurement refers then to the “bending” of the moving part.  The greater amount of bend (displacement) the more likely the part is to fail.

VELOCITY:
Speed of movement.  Since the part or machine is moving, it is therefore understood that it is moving at some speed.  Noting a sine wave of the motion, the spped is greatest at the neutral point since at each extreme limit of motion, the part must come to a complete stop before it can change its direction of movement.  It will then increase its speed until it reaches the neutral point when it commences to slowing down prior to reaching the other extreme point of movement. The neutral point – reference to velocity – is referred to as the point of PEAK VELOCITY.  Velocity measurement is expressed in “inches per second peak.”

ACCELERATION:
(What Robertshaw measures)
Acceleration is the first derivative of velocity with respect to time.  On the Sine wave of vibration it is shown that the point of maximum acceleration occur at the extreme limits of travel when the part must stop its movement entirely and restart in the opposite direction.  Therefore, acceleration can be stated as the vibratory “force” being applied to the machine or part.  Large forces of acceleration can occur at hig frequencies even though displacement and velocity of the vibration are small. This can be understood by the fact that acceleration is a function of the displacement and the square of the frequency. This force can result in the breakdown of bearings, lubricant, etc.  Acceleration is sometimes referred to as the measurement or detection of shock. Think of a pre-ignition in one cylinder of an automobile engine.  At the time of pre-ignition, displacement would be very small, velocity is also small but the shock (acceleration) is very high!

FREQUENCY:
The frequency is the number of complete Sine waves the motion of movement a machine of par will make in one unit of time.  Normally, this unit of time is: per minute or per second. Referring to the definition of “displacement,” it was stated that “the greater the amount of bend, the more likely it is to fail.” It can be added that the increasing the rate of bending (the more times per unit of time that the metal is bent), the quicker it will fail.  The “rate” is the frequency. This can also be stated as “the time rate of change of displacement” – or – the first derivative of displacement with respect to time.

SINE WAVE:
The type of vibration produced by a single frequency. This type of vibration rarely, if ever, occurs on an operating machine. Note the Sinusoidal Motion Waveform Figure which is the resultant shape of displacement with respect to time pure harmonic motion-sinusoidal single frequency.



COMPLEX WAVE:
Most operating machines produce vibration waveforms which are non-sinusoidal.  These are called complex periodic waveforms. Recognizing that many frequency components and harmonics are added to produce a given condition of vibration on any particular machine, the resulting motion will assume a complex wave form. The distortion from a pure sine wave is most apparent.  Displacement measurements give little or no information with respect to the harmonic content of the resulting vibratory motion. The complex wave which has a second harmonic with an amplitude 40% as large as the fundamental and a fourth harmonic 20% as large as the fundamental.



Why Monitor Machine Vibration:

The purpose of monitoring vibration is to detect a mechanical malfunction (malfunction detector) as it first begins to develop and wither save an expensive machine or greatly reduce the cost of repairs and down time.  On many machines, dangerous conditions of operation can be corrected IF the machine is stopped before damage is done. Saving from ONE operation of a Vibraswitch can frequently amount to more money than it would cost to equip an entire plant, refinery or pipeline. Thousands of large, electrically driven centrifugal fans or blowers are now protected with circuit breakers on the driving of motors which will respond only to pver current condition of the motor. Others use temperature monitors on anti-friction bearings.  The latter does not respond to unbalance caused by a damaged rotor or accumulated deposits and frequently they respond too late to a failing bearing.  The controls normally installed on large prime movers, for example, respond to all important variable with, in many case, one exception – ACCELERATION due to vibration.  Large machines can and do tear themselves apart without any of the conventional protective devices responding.  When this happens, it is obvious that something is missing in the protective controls.  If the need for vibration protection is so obvious, why isn’t it standard practice for all large machines to have protective devices specified?

Vibration is a difficult quality to measure, comprehend or compare since it is composed of a fundamental, higher harmonics and aperiodic components (transients), all of which vary greatly with different machines and different locations on the same machine. The typical prospective user assumes that the only significant quantity to measure is mils (displacement) and has no idea as to what level would be safe.  The Vibraswitch offers a solution to the machine vibration problem in nearly all cases buy many users do not know of the Robertshaw Vibraswitch.

Many potential users relied on the ability of the operating people to hear any changes in the sound of machines which might reflect mechanical trouble. The dependence on sound was better than nothing but had important disadvantages because sound at the fundamental (low) frequency of rotation is usually inaudible; the human ear is very poor in remembering and comparing sound levels and the sound of a machine Is frequently masked by extraneous noise.  A great disadvantage is that constant operator attendance is required. This is not possible or economical on many machines with automation and remote operation required many places.

How the Robertshaw VIBRASWITCH measure Acceleration:

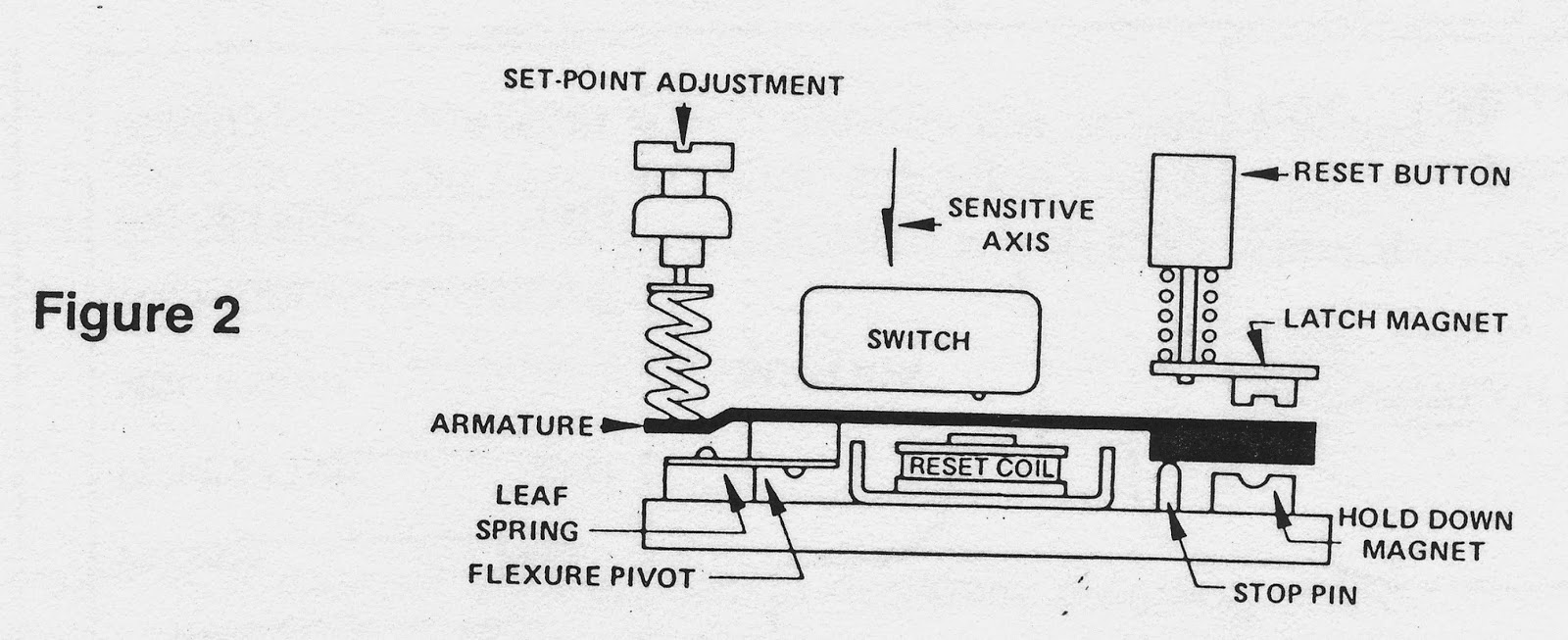

The Robertshaw detector mechanism consists of an armature suspended on a flexure type pivot and restrained from motion by a permanent magnet acting through a small air gap. A compression spring provides an adjustable force opposing the magnet, and serves as the adjustable set-point calibrated in”G’s.”  The armature acts a s lever; it is forced in one direction by the adjusting spring and balanced by the magnetic orce; as shown in Figure 1.




The Armature is constrained to only one freedom of movement by the flexure pivot composed of two overlapping blocks and a leaf spring loaded in one direction to hold the blocks together as shown in Figure 2.  When the entire assembly is subjected to vibration perpendicular to the base, the peak acceleration times the effective mass of the armature produces an inertial force aided by the spring, which tends to pull the armature away from the stop pin. When the peak acceleration exceeds a pre-selected set point level, the armature leaves the stop pin and moves up to the latch magnet which holds in it the “alarm” (excess vibration) position.
The motion of the armature actuates a snap-action switch which signals that the set-point has been exceeded. The Robertshaw Vibraswitch is a simple mechanical accelerometer with on-off control output!

To get a quote, please use our Robertshaw Parts Form HERE.

800-929-2845

Wednesday, April 30, 2014

Meltric Wall Mount 30 AMP Plug

Meltric Plug Wall Mount System 30 amp from Sords Electric.

Meltric DeContactors provide a very safe and easy way for providing power for air compressors, welders, heaters and large fans. Below is 240/250 volt wall mount version.  These Meltric deContactors are SWITCH rated, meaning you can disconnect under load.  It short, it can also be an emergency disconnect switch. (Mushroom Pawls Available)






















System includes Junction box, 30 degree angle, female receptacle, male plug and nylon handle.

Above picture shows all but handle.

Meltric Metal Junction Box with angle 61-3A053-080-12

Meltric Receptacle 63-34073  250 volts

Meltric Plug 63-38073   250 volts

Meltric Nylon Handle 61-3A013


Great for Farm Shops, Warehouses, Plant Floors, Green Houses, Garages, Auto Shops, Gas Stations, Bowling Alleys, Restaurants, Dry Cleaners, Breweries and Hotels.

Other voltages available too: 120, 208, 277, 480, 600
Other Amperages available : 20, 60, 100

30 amps parts are usually stock at Sords Electric
Other amperages are 1 week from Meltric.

Meltric parts request form.

www.sordselectric.com
800-929-2845

Sunday, March 30, 2014

Watlow FireRod Cartridge Heaters

Watlow Firerod Cartridge Heaters from Sords Electric


The Watlow FIREROD® cartridge heater revolutionized the heating element industry in 1954 when it was patented as the first swaged cartridge heater. The mechanical procedure of swaging reduces the diameter of the heater by compacting the unit; this directly improves the heat transfer and efficiency of the heater.
Watlow FIRE ROD cartridge heaters are built using only the finest materials and construction methods and are backed with extensive quality assurance programs. With premium materials and tight manufacturing controls, the FIREROD heater provides superior heat transfer, uniform temperatures, resistance to oxidation and corrosion and a long life even at high temperatures.
Alloy 800  Sheath FireRod Cartrdige heaters have a max operating temperature of 1400 F (760C) and a maximum watt density of 400 W/in². Watlow Fire Rod Cartrdige heaters come in 120, 240 and 480 voltages.  Wattages from 25 to 4700 watts.


Applications:
  • Semiconductor chamber heating
  • Semiconductor wafer lead connection
  • Semiconductor wire and die bonding
  • Freeze protection and deicing of equipment in cold climates or applications
  • Humidity control
  • Patient comfort heating used in medical devices
  • Mold die and platen heating
  • Seal bars used in packaging equipment
  • Test sample heating in gas chromatography

Camber
Camber is defined as the maximum deviation of the heater’s centerline from straight. FIREROD camber within allowable tolerances is verified via passage through a cylindrical gauge of specified length and diameter. Normally, slight camber does not present a problem since the heater will flex enough to fit into a straight, close-fit hole.

Component Recognition File Numbers
•  UL® component rated to 240VAC (file number E52951)
•  CSA component rated to 240VAC (file number LR7392)
•  VDE component rated to 240VAC (file number 10062-4911-0006)
Note: Not all options or combinations of options are covered. UL®, CSA, VDE and CE marking is available upon request.

Watlow FIREROD® catalog page for all sizes:  CLICK HERE!

An assortment of  Watlow Fire Rod Cartridge heaters.

Watlow Firerod Cartridge Heater, 120 volts, 25 Watts, 1/8 diameter, C1E14

Watlow Firerod Cartridge Heater, 120 volts, 50 Watts, 1/8 diameter, C1E13

Watlow Firerod Cartridge Heater, 240 volts, 35 Watts, 1/8 diameter, C1E42

Watlow Firerod Cartridge Heater, 120 volts, 30 Watts, 1/8 diameter, C1J5

Watlow Firerod Cartridge Heater, 120 volts, 60 Watts, 1/8 diameter, C1J6

Watlow Hot Runner Cartridge Heater, 240 volts, 200 Watts, 1/4 diameter, E1JX442A

Watlow Hot Runner Cartridge Heater, 240 volts, 200 Watts, 1/4 diameter, E2AX619A

Watlow Hot Runner Cartridge Heater, 120 volts, 200 Watts, 1/4 diameter, E2JX287A

Watlow Hot Runner Cartridge Heater, 240 volts, 200 Watts, 1/4 diameter, E3AX575A

Watlow Firerod Cartridge Heater, 120 volts, 100 Watts, 1/4 diameter, E1A52

Watlow Firerod Cartridge Heater, 240 volts, 100 Watts, 1/4 diameter, E1A66

Watlow Firerod Cartridge Heater, 120 volts, 200 Watts, 1/4 diameter, E1J42

Watlow Firerod Cartridge Heater, 120 volts, 250 Watts, 1/4 diameter, E2A72

Watlow Firerod Cartridge Heater, 240 volts, 300 Watts, 1/4 diameter, E2A83

Watlow Firerod Cartridge Heater, 120 volts, 250 Watts, 3/8 diameter, G3A52

Watlow Firerod Cartridge Heater, 240 volts, 250 Watts, 3/8 diameter, G3A54

Watlow Firerod Cartridge Heater, 120 volts, 500 Watts, 3/8 diameter, G3A119

Watlow Firerod Cartridge Heater, 240 volts, 500 Watts, 3/8 diameter, G3A120

Watlow Hot Runner Cartridge Heater, 240 volts, 625 Watts, 1/2 diameter, J5AX178B

Watlow Hot Runner Cartridge Heater, 240 volts, 850 Watts, 1/2 diameter, J6JX45C

Watlow Firerod Cartridge Heater, 120 volts, 125 Watts, 1/2 diameter, J1A31

Watlow Firerod Cartridge Heater, 240 volts, 200 Watts, 1/2 diameter, J1E52

Watlow Firerod Cartridge Heater, 120 volts, 200 Watts, 1/2 diameter, J1J59

Watlow Firerod Cartridge Heater, 120 volts, 400 Watts, 1/2 diameter, J2A81

Watlow Firerod Cartridge Heater, 240 volts, 400 Watts, 1/2 diameter, J2A82

Watlow Firerod Cartridge Heater, 120 volts, 500 Watts, 1/2 diameter, J3A110

Watlow Firerod Cartridge Heater, 240 volts, 500 Watts, 1/2 diameter, J3A111

Watlow Firerod Cartridge Heater, 120 volts, 1000 Watts, 1/2 diameter, J3A79

Watlow Firerod Cartridge Heater, 240 volts, 1000 Watts, 1/2 diameter, J4A73

Watlow Firerod Cartridge Heater, 120 volts, 200 Watts, 5/8 diameter, L1E24

Watlow Firerod Cartridge Heater, 120 volts, 250 Watts, 5/8 diameter, L1E27

Watlow Firerod Cartridge Heater, 240 volts, 250 Watts, 5/8 diameter, L1J24

Watlow Firerod Cartridge Heater, 240 volts, 500 Watts, 5/8 diameter, L3A113

Watlow Firerod Cartridge Heater, 240 volts, 750 Watts, 5/8 diameter, L3A71

Watlow Firerod Cartridge Heater, 240 volts, 1000 Watts, 5/8 diameter, L4A71

Watlow Firerod Cartridge Heater, 120 volts, 800 Watts, 5/8 diameter, L5G3

Watlow Firerod Cartridge Heater, 240 volts, 800 Watts, 5/8 diameter, L5G1

Watlow Firerod Cartridge Heater, 240 volts, 500 Watts, 3/4 diameter, N3A12

Watlow Firerod Cartridge Heater, 240 volts, 1000 Watts, 3/4 diameter, N4A15

Watlow Firerod Cartridge Heater, 240 volts, 2000 Watts, 3/4 diameter, N6A22

Watlow Firerod Cartridge Heater, 240 volts, 4000 Watts, 3/4 diameter, N12A25

Watlow Firerod Cartridge Heater, 240 volts, 4500 Watts, 3/4 diameter, N14A21

Watlow Firerod Cartridge Heater, 240 volts, 5000 Watts, 3/4 diameter, N18A15

Watlow Firerod Cartridge Heater, 240 volts, 5500 Watts, 3/4 diameter, N24A13

Buy Watlow Firerod Heaters HERE!

To order via Phone, please call 800-929-2845
